iPhone 17 Pro Teardown Reveals Comprehensive Redesign for Creatives

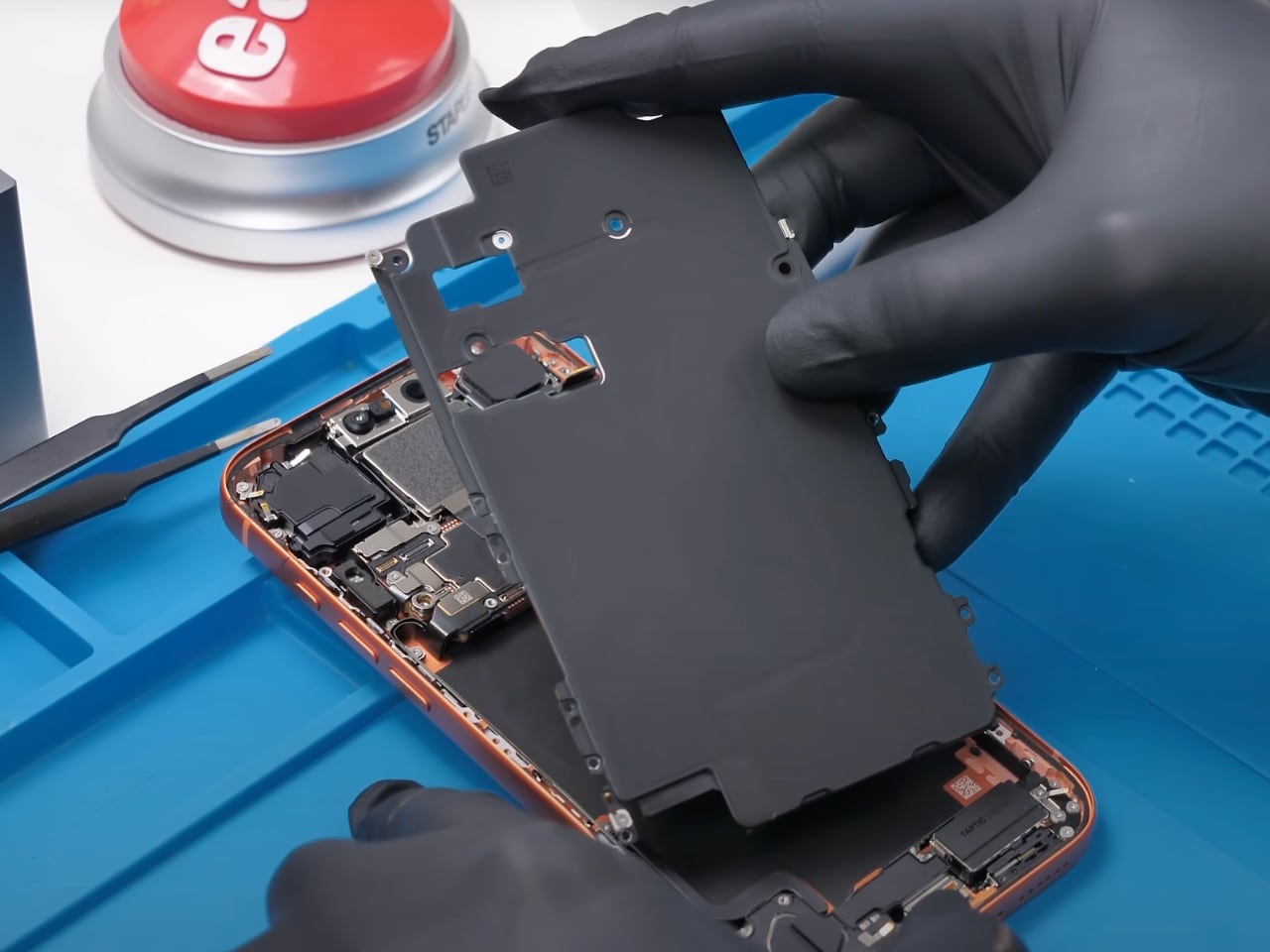

The recent teardown of the iPhone 17 Pro has unveiled a complete overhaul of the device, showcasing significant advancements in both design and functionality. Professional repair technicians encountered a strikingly complex assembly, featuring fifteen screws, a formidable metal shield protecting internal components, and specialized torque screws requiring multiple tools. This transformation signifies a fundamental shift in Apple’s engineering philosophy, moving beyond traditional smartphone design.

Apple has not merely enhanced the iPhone 17 Pro; it has redefined its internal architecture, paving the way for creative professionals to achieve workflows that were previously unattainable on mobile devices. The new aluminum unibody design effectively dissipates heat, circumventing the thermal throttling that has historically limited performance during intensive tasks. This comprehensive redesign allows creative users to push the limits of mobile productivity.

Innovative Thermal Management System

The teardown revealed Apple’s first-ever vapor chamber cooling system, a revelation that challenges conventional smartphone design. Unlike previous models, this system does not rely on visible liquid; instead, it utilizes trace amounts of deionized water that evaporates near heat sources and redistributes throughout the aluminum chassis. This innovative thermal management approach enables sustained performance during demanding workloads, ensuring that the device remains responsive even under heavy use.

In a notable change, the layout of the logic board has been reengineered to prioritize thermal stability. The newly designed miniaturized board occupies less space than the camera components, making room for the vapor chamber while positioning the A19 Pro processor alongside 12GB RAM and 512GB storage. Additionally, the 5,112 mAh battery is integrated with the cooling system, allowing for efficient charging without overheating.

This design philosophy significantly enhances the device’s capability for creative workflows. By minimizing throttling during demanding tasks, Apple has effectively created a smartphone that can support desktop-class applications, unlocking new possibilities for creative professionals.

Camera Enhancements and Their Impact

The camera system also underwent substantial redesigns, immediately noticeable upon opening the device. The teardown confirms that all three rear cameras now feature 48-megapixel sensors enhanced with computational fusion technology. The telephoto camera, in particular, benefits from a larger sensor, improving optical performance and enabling better image quality.

These advancements have resulted in cascading design challenges. The larger size of the cameras generates significant heat during photography and video recording, prompting Apple to integrate each camera directly with the vapor chamber system. This integration ensures that sensor temperatures remain optimal, even during extended use for professional applications.

Furthermore, the front camera has evolved into an 18-megapixel system designed for both portrait and landscape capture. This ambitious redesign retains Face ID functionality while maintaining effective thermal management, which is crucial for prolonged video calls and content creation.

For photographers and videographers, these enhancements signal a leap toward professional-grade mobile capture, making the iPhone 17 Pro a viable tool for tasks once reserved for dedicated cameras.

Material Choices and Sustainability

Apple’s transition from titanium to aerospace-grade 7000 series aluminum underscores its commitment to thermal efficiency and sustainability. While titanium previously offered aesthetic appeal, aluminum’s superior heat conductivity is essential for the vapor chamber cooling system’s effectiveness. This material choice not only enhances thermal performance but also improves recyclability, aligning with environmentally responsible design principles.

The aluminum unibody doubles as a heat sink, effectively dispersing thermal energy across the device and preventing uncomfortable hot spots during intensive use. For users, this translates to a more comfortable experience, whether during demanding creative tasks or while charging.

The sustainability implications of this choice resonate with environmentally conscious consumers. Aluminum’s recyclability, combined with the unibody construction that minimizes material waste, reflects a proactive approach to reducing manufacturing complexity while enhancing durability.

Challenges in Repairability

Despite these advancements, the teardown also highlights a tension between engineering precision and user serviceability. The complexity of accessing the device is notable, with the teardown revealing that multiple screw types and torque screws complicate the repair experience. While the removable back glass panel addresses common repair scenarios, the focus on thermal management has resulted in challenges for technicians.

Apple’s design choices prioritize thermal performance over traditional repair accessibility, reflecting a commitment to durability for professional users. However, the intricacies of the assembly raise concerns about the ease of servicing the device, as the complexity of the internal layout may deter repair efforts.

The engineering decisions made for the iPhone 17 Pro serve to enhance user experience, particularly for those engaged in creative workflows. By enabling consistent performance across varied tasks, Apple continues to push the boundaries of what is possible in mobile technology.

The teardown analysis suggests that the iPhone 17 Pro is Apple’s most significant engineering transformation in years, positioning thermal management as a core component of mobile design. From the unexpected assembly challenges to the innovative cooling solutions, this device exemplifies Apple’s dedication to delivering superior performance in a handheld format.

Ultimately, the iPhone 17 Pro is a device designed for professionals who demand reliability and efficiency in their creative endeavors, marking a new era in smartphone capabilities.
